We supply Caprock brand replacement infrared IR flash lamps and quartz heating elements for all Workhorse quartz flash dryers, including Flashback, Blue Falcon, Powerhouse and for their conveyor dryers. There are three types of quartz IR heater elements used in Workhorse dryers:
1. Medium wave element, with a metal overcap and a ring at each end
2. Medium wave element with a round ceramic end and a threaded stud
3. Spring mounted short wave lamp.
The medium wave heaters are the "original" style" medium wave lamps with flexible end caps, to prevent breakage and short life common with the newer style carbon filament lamps. We sell all our Workhorse replacements by the piece, so you can order the exact quantity you need. The lamps are packed in one box for shipping, to save you money on freight.
We also supply Caprock brand
replacement lamps for all Workhorse screen exposure systems.
| Medium Wave Infrared (IR) Flash Elements (Lamps) with Rings |
Standard medium wave elements typically measure one-half inch in diameter. Unlike quartz halogen lamps, these are not sealed at the ends- the filament is attached to the caps to hold them on. with the newer elements, a ring protrudes from the end of the lamp and is used for mounting. These medium wave lamps typically take about thirty seconds to reach their full operating temperature.

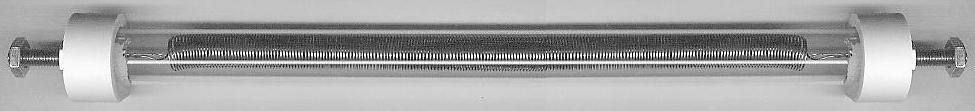

| Medium Wave Infrared (IR) Flash Elements (Lamps) with Threaded Studs |
For many of the older elements, especially those used in conveyor dryers, a threaded stud is used for mounting.
Workhorse discontinued these older style fittings in favor of the rings, forcing
you to spend a lot of money to convert your system. These were used
primarily in conveyor dryers. We can still supply
these older style lamps. We do not supply replacement heating elements,
only the complete lamp.
| Short Wave Infrared (IR) Flash Lamps |
Standard short wave lamps have a ceramic fitting and are spring-loaded into the machine. These typically are 3/8 inches in diameter and heat up almost instantly.
We supply Caprock
brand compatible IR lamps for these common Workhorse part numbers:
E-0976 •
E-0976R •
E0976R •
E-0976V •
E0976V • E-0977 • E-0977R • E0977R • E-0977V • E0977V • E-0039 • E-0040 • E-0041 •
10-22-012 • 10-22012 • 10-22-013 • 10-22013 • 34-20913 • 34-20932R • 34-20951 • 34-20953 • 34-20955 • 34-20957 • 34-20958 •
34-20970 •
34-20970R •
34-20971 •
34-20971R
Click to order quartz flash lamps now!
We save you money by offering top-quality alternatives to higher-priced equipment maker and OEM branded lamps. Unless otherwise specified, all the lamps we sell are Caprock brand compatible replacememts for equipment maker and OEM branded lamps not the equipment maker or OEM branded lamps.
